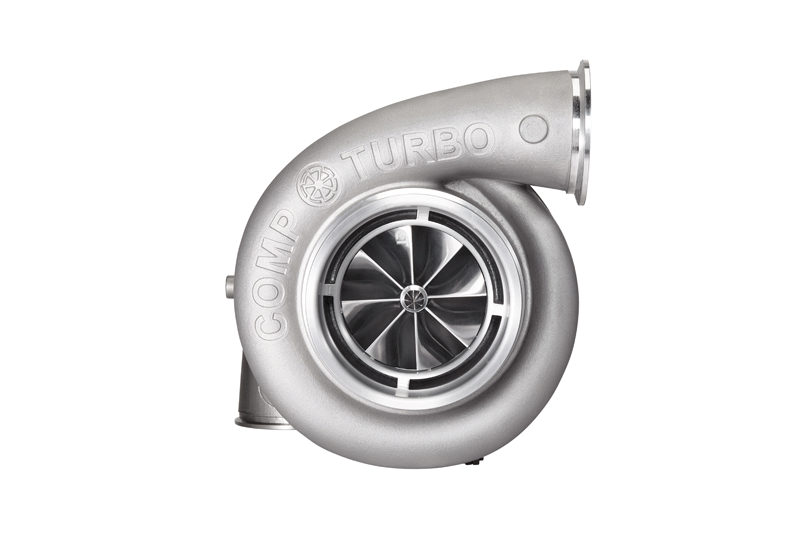

CTR55118S-118110

Horsepower 2800

Displacement 3.0L - 12.0L

OIL-LESS 3.0

Part # 5511802-S

FEATURES

Titanium Bullet Nose

99% Mechanical Efficiency

Fully Rebuildable/Upgradeable

Anti-Surge Compressor Housing

Billet Aluminium Bearing Housing

Can Be Mounted In Any Orientation

Inconel 713C 10 Bladed Turbine Wheel

Patented TRIPLEX CERAMIC™ Ball Bearing Oil-Less System

NEW 8/16 Vane Billet Slim Hub Extended Tip Compressor Wheel

BEARING HOUSING

Water Port Threads

3/8 18 NPT

COMPRESSOR

Inducer

118mm

Exducer

141mm

TURBINE

OD

130mm

Exducer

110mm

COMPRESSOR HOUSING

Inlet

6"

Outlet

3.5"

A/R

.69

Boost

1/8-27 NPT

TURBINE HOUSING OPTIONS

ACCESSORIES
